Ever wondered about the difference between something being “diecast” and being made of “aluminum”? It’s a common question, especially when you’re dealing with anything from model cars to engine parts. The terms are often used interchangeably, but they actually refer to different things – one is a process, and the other is a material. Let’s break it down in a way that’s easy to understand.
Aluminum: The Metal Itself

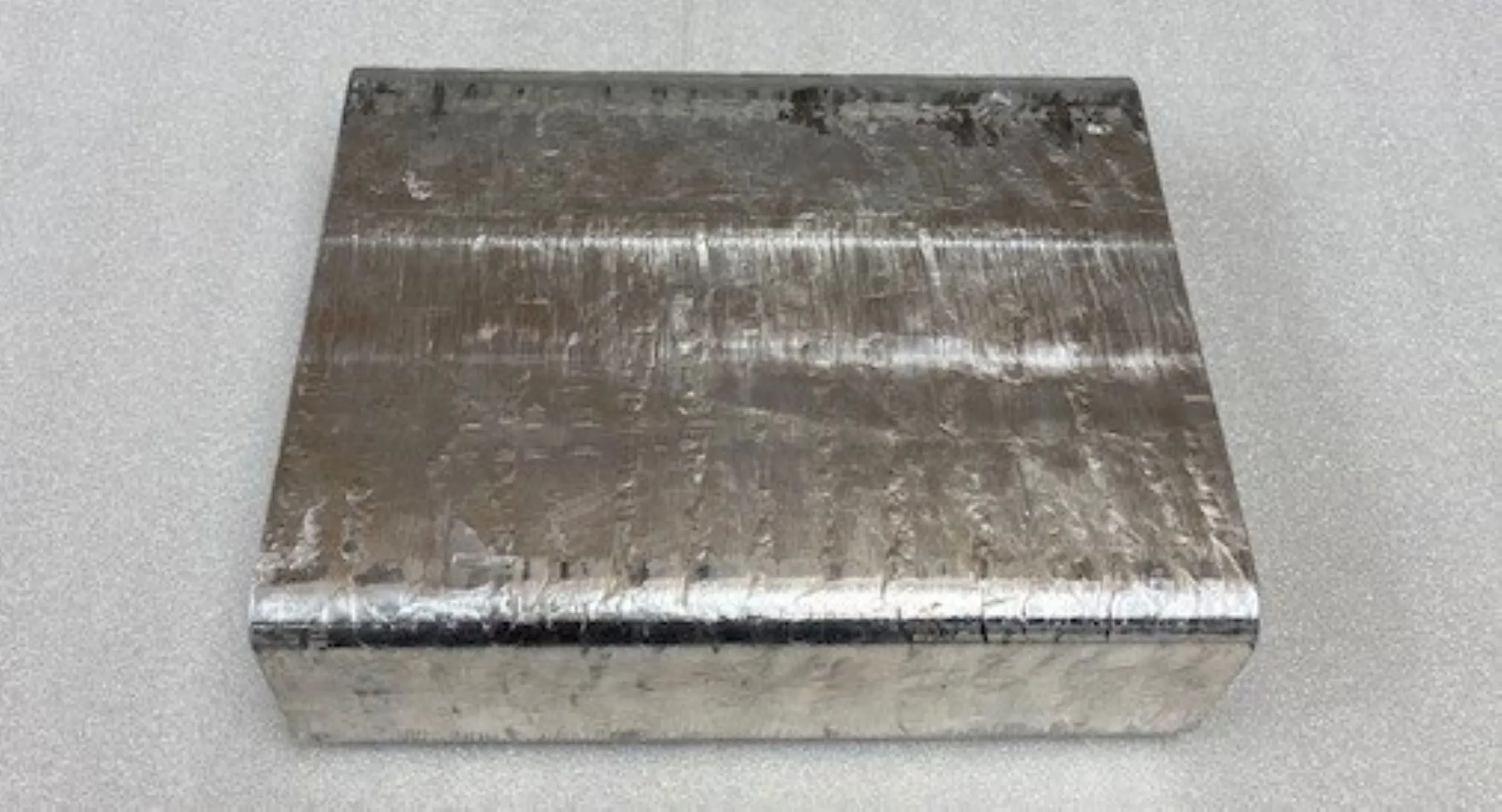

First, let’s talk about aluminum. Aluminum (or aluminium, depending on where you’re from) is a lightweight, non-ferrous metal. That means it doesn’t contain iron, making it resistant to rust. It’s also incredibly versatile and abundant, making it a popular choice for all sorts of applications. Think soda cans, airplane parts, window frames – aluminum is everywhere.
Aluminum’s key properties include its strength-to-weight ratio, corrosion resistance, and ability to be easily shaped. It’s also a good conductor of electricity and heat. However, pure aluminum is relatively soft. To make it stronger and more suitable for various uses, it’s often alloyed with other metals like silicon, magnesium, zinc, and copper.
Different aluminum alloys have different properties. For example, 6061 aluminum, a common alloy, is known for its strength and weldability, making it suitable for structural applications. 7075 aluminum, on the other hand, offers even greater strength but is less weldable, often used in aircraft.
Die Casting: The Manufacturing Process

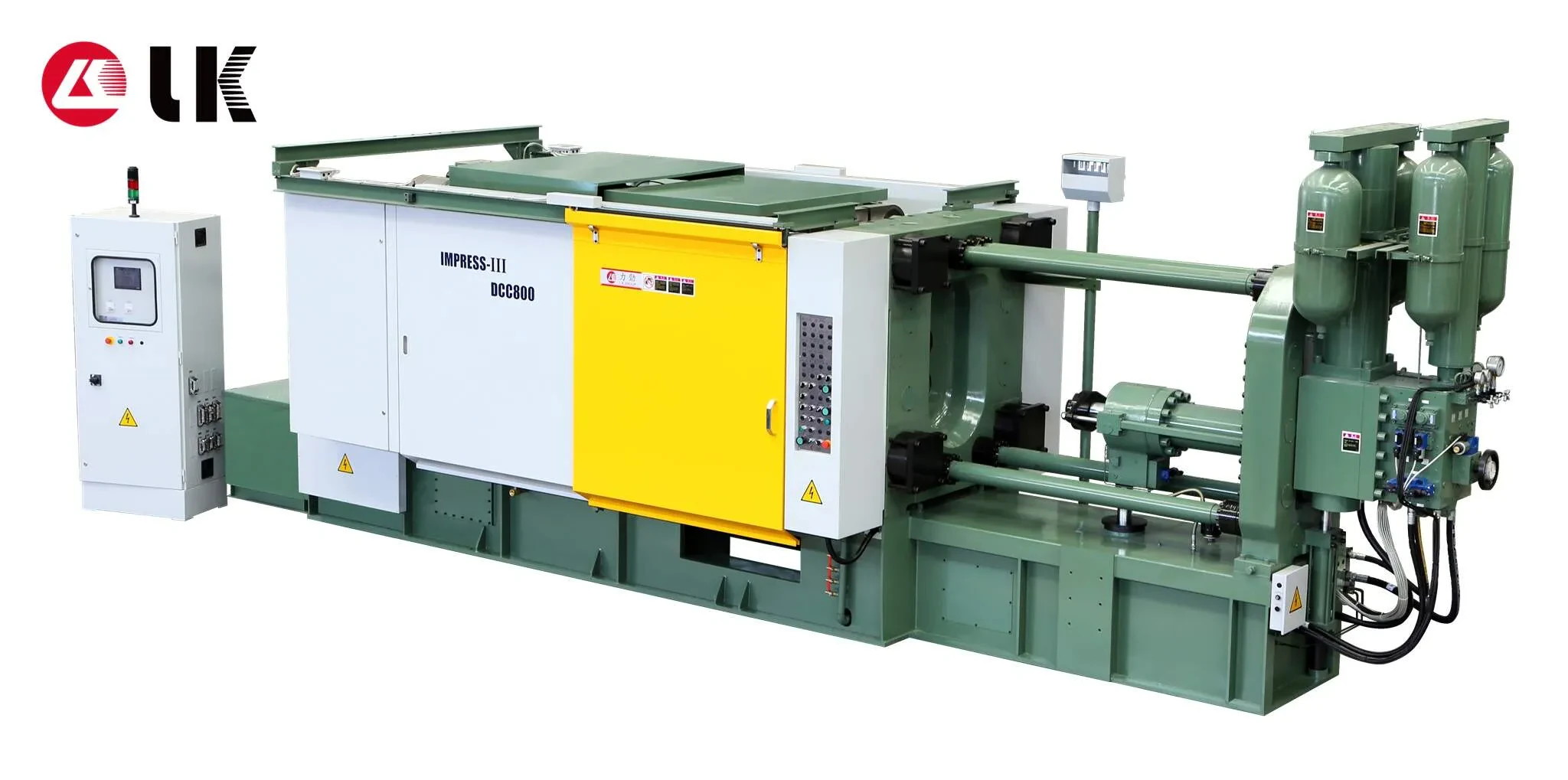

Now, let’s move on to die casting. Die casting is a manufacturing process where molten metal is forced under high pressure into a mold cavity. The mold cavity (or die) is created using two hardened tool steel dies which have been machined into shape. Most die castings are made from non-ferrous metals, specifically zinc, copper, aluminum, magnesium, lead, tin, and their alloys.
Think of it like using a metal injection mold. The molten metal is injected, it cools and solidifies inside the die, and then the die is opened to eject the finished part. This process is excellent for producing high volumes of parts with intricate shapes and tight tolerances.
Die casting offers several advantages. It produces parts with good dimensional accuracy, smooth surfaces, and the ability to create complex geometries. It’s also a relatively fast process, allowing for high production rates. However, it can be more expensive upfront due to the cost of creating the dies. The parts also may contain porosity issues.
Types of Die Casting
- High Pressure Die Casting: The most common type, using high pressure to inject the molten metal.
- Low Pressure Die Casting: Uses lower pressure, resulting in less turbulent flow and potentially fewer porosity issues.
- Vacuum Die Casting: Involves a vacuum to remove air from the die cavity, further reducing porosity.
- Squeeze Die Casting: Applies pressure during solidification, improving mechanical properties.
So, What’s the Difference?

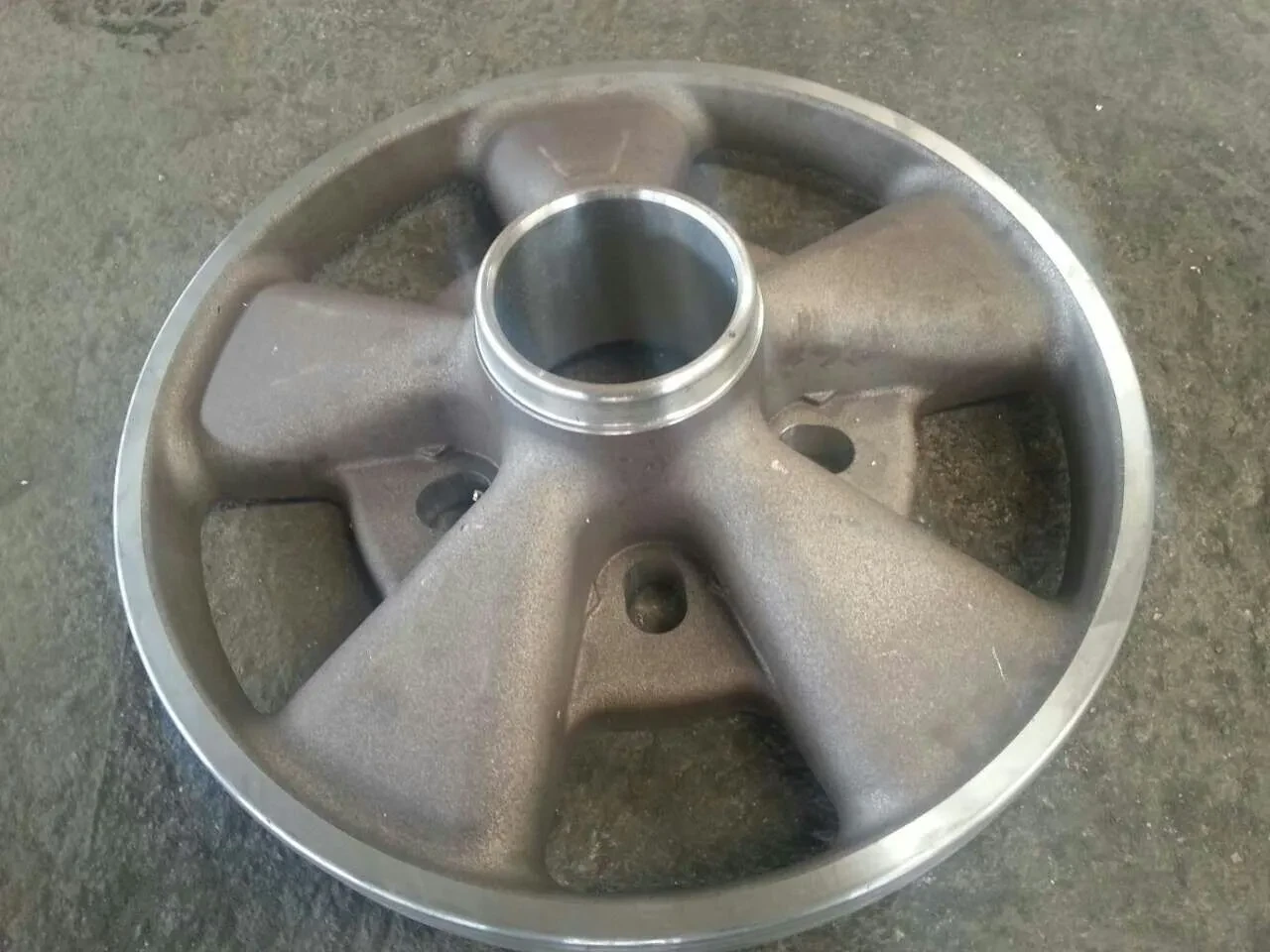

The key takeaway is this: aluminum is a material, while die casting is a manufacturing process. You can have die-cast aluminum parts, meaning parts made of aluminum that were created using the die-casting process. But you can also have aluminum parts made using other processes, like machining, extrusion, or forging.
Similarly, die casting isn’t limited to aluminum. You can die-cast parts using other metals, such as zinc, magnesium, or copper alloys. Each metal has its own advantages and disadvantages, influencing the choice of material for a specific application.
Diecast Aluminum versus Other Aluminum Manufacturing Methods
Diecast aluminum parts are often compared to aluminum parts made through other methods. The primary competitors for die casting include machining, sand casting, investment casting and extrusion.
Machining involves removing material from a solid block of aluminum to create the desired shape. While it offers high precision, it can be slow and wasteful, especially for complex shapes. Sand casting involves pouring molten aluminum into a sand mold. It’s a lower-cost option for large parts, but the surface finish and dimensional accuracy are generally lower compared to die casting.
Investment casting, also known as lost-wax casting, offers excellent surface finish and dimensional accuracy, but it’s a more complex and expensive process. Extrusion involves pushing aluminum through a die to create long, continuous shapes. It’s ideal for profiles like window frames and railings, but it’s not suitable for complex three-dimensional parts.
Choosing the Right Process for 2024
When deciding whether to use diecast aluminum or another manufacturing method, consider the following factors:
- Volume: Die casting is most cost-effective for high-volume production.
- Complexity: Die casting can handle intricate shapes and tight tolerances.
- Surface Finish: Die casting offers a smooth surface finish, reducing the need for secondary operations.
- Mechanical Properties: Different processes affect the strength and other properties of the finished part. Consider which properties are critical for your application.
- Cost: Factor in the cost of tooling, materials, and production time.
- Porosity: Understand that die casting processes may create porosity that may impact structural integrity.
In 2024, advancements in die casting technology are making the process even more efficient and versatile. Vacuum die casting and squeeze die casting are gaining popularity for applications requiring high strength and minimal porosity. Similarly, additive manufacturing (3D printing) of dies allows for more complex die designs and faster prototyping.
Examples in Everyday Life
To solidify your understanding, let’s look at some common examples:
- Model Cars: Many model cars are made from diecast zinc alloys, giving them weight and detail.
- Engine Components: Aluminum engine blocks and cylinder heads are often die-cast for efficient production and complex geometries.
- Lighting Fixtures: Many outdoor lighting fixtures are diecast aluminum, providing corrosion resistance and durability.
- Power Tools: The housings of many power tools are made from diecast aluminum, providing a lightweight and strong enclosure.
Ultimately, the choice between diecast aluminum and other materials or manufacturing processes depends on the specific requirements of your project. By understanding the properties of aluminum and the capabilities of die casting, you can make an informed decision and achieve the best possible results.
